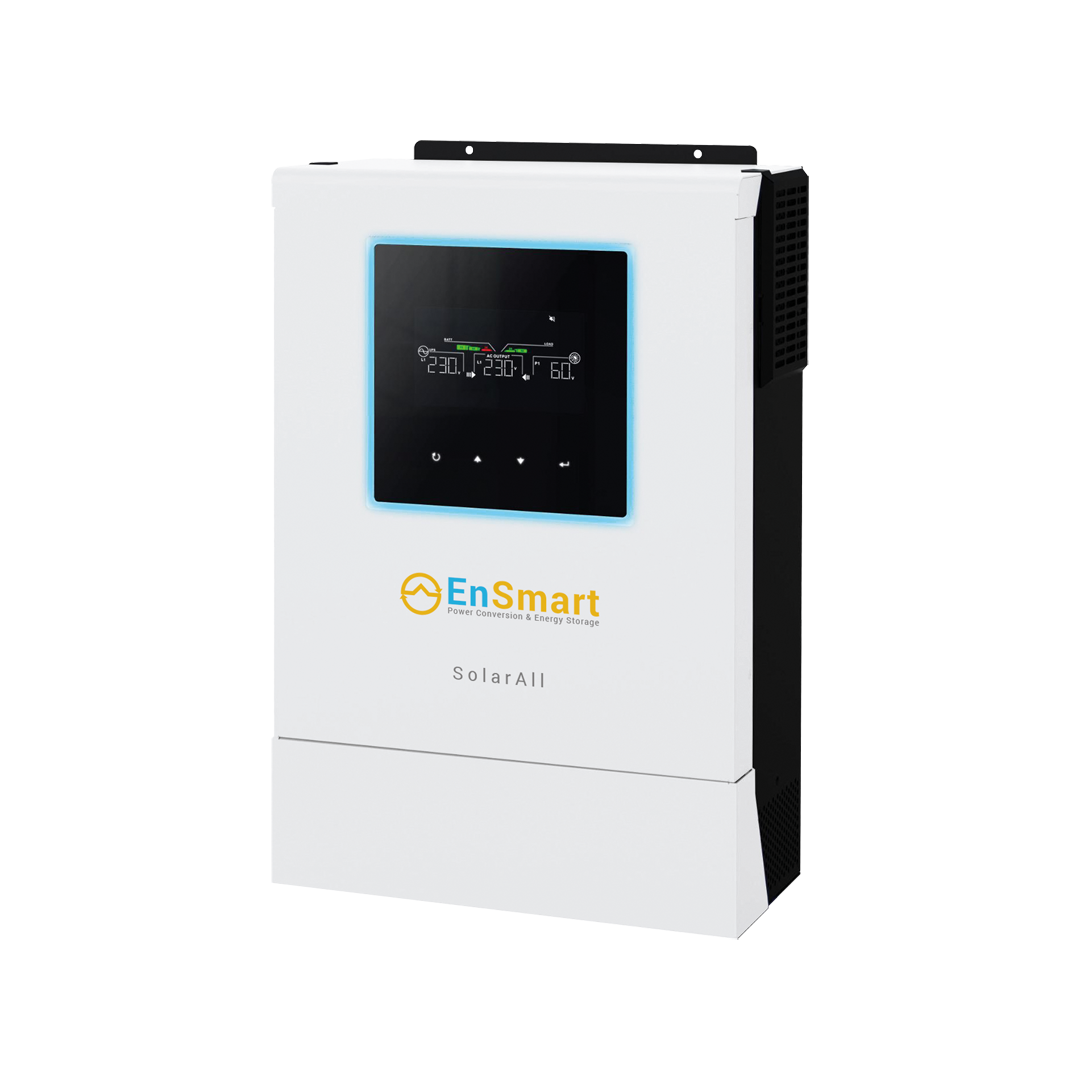

SolarAll Series
3.6-5.6KW
SINGLE PHASE OFF-GRID INVERTER
SolarAll 3.6-5.6kW single-phase off-grid solar inverter is suitable for nomadic off-grid sites, communication base stations, islands, borders.Equipped with LED display, SolarAll 3.6-5.6kW single-phase off-grid solar inverter supports USB/RS232/RS485/Wifi/Dry-contact, with exquisite design and high cost performance.
- Pure sine wave MPPT solar inverter
- Customizable status LED ring with RGB lights
- Touchable button with 4.3" colored LCD
- Wide DC input range
- Supports USB On-the-Go function
- Data log events stored in the inverter
- Built-in Wi-Fi for mobile monitoring (App is available)
- Reserved communication port for BMS
- Battery independent function
- Parallel operation with up to 9 units
- Optional dual outputs for smart load management
Applications
Luxury Villa
Communication Base Station
Nomadic Farm
Residential Electricity
Highlights
Efficient / Higher Revenue
200% AC overload (100ms), withstand transient load impact. Wide voltage range and low startup voltage. Wide MPPT voltage range to compatible with different types of crystalline silicon modules. Fast AC bypass charging.
Intelligent / Simple O&M
Support USB/RS232/RS485/Wifi/Dry contact. Data log events stored in the inverter Smart battery charger design, optimize battery performance. Remote monitoring and operation via PC or mobile phones
Flexible / Abundant Configuration
Multiple charging voltage levels for different batteries. Multiple operating modes: PV priority/Grid priority/Battery priority Support non-linear load Parallel operation up to 9 units
