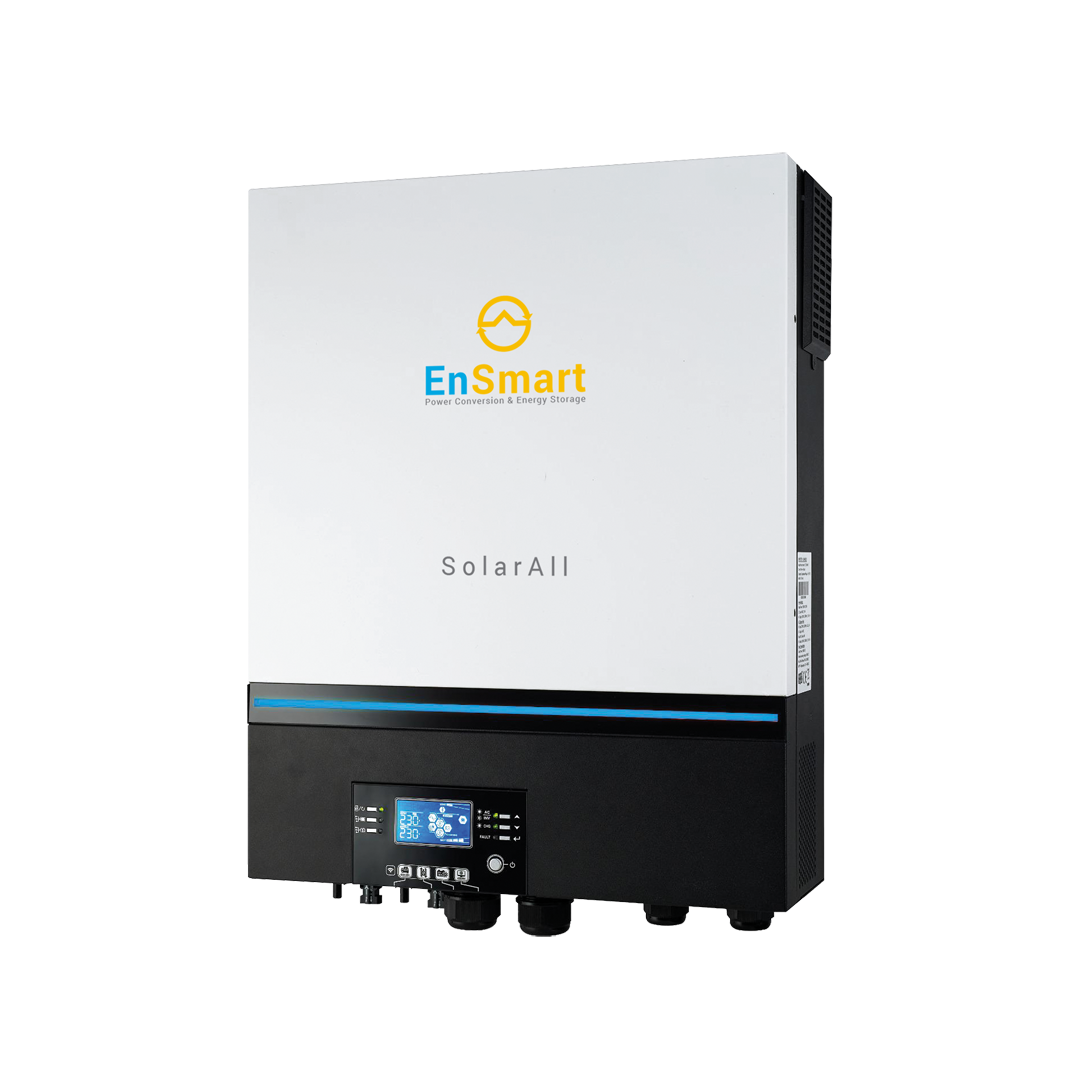

SolarAll Series
8-11KW
SINGLE PHASE OFF-GRID INVERTER
SolarAll 8-11kW single-phase high performance off-grid solar inverter with 120A/150A MPPT solar charger is suitable for nomadic off-grid sites, communication base stations, islands, borders.Equipped with LED display, SolarAll 8-11kw single-phase off-grid solar inverter supports USB/RS232/RS485/Wifi/Dry-contact, with exquisite design and high performance.
- Dual Output High performance Off-grid Inverter
- Maximum PV input current increases to 27A
- Wide PV input voltage range 90VDC ~ 450VDC
- Status indication with RGB lights
- Built-in Wi-Fi for mobile monitoring (App is available)
- Supports USB On-the-Go function
- Communication port for BMS (RS485, CAN-BUS or RS232)
- Replaceable fan design for ease of maintenance
- Battery independent design
- Selectable high power charging current
- Compatible to Utility Mains or generator input
- Built-in anti-dust kit
- Optional DC output for DC fan, LED bulb, router etc.
- Parallel operation with 6 units
Applications
Luxury Villa
Communication Base Station
Nomadic Farm
Residential Electricity
Highlights
Efficient / Higher Revenue
200% AC overload (100ms), withstand transient load impact. Wide voltage range and low startup voltage. Wide MPPT voltage range to compatible with different types of crystalline silicon modules. Fast AC bypass charging.
Intelligent / Simple O&M
Support USB/RS232/RS485/Bluetooth/Dry contact. Smart battery charger design, optimize battery performance. Dual output for smart load management Remote monitoring and operation via PC or mobile phones
Flexible / Abundant Configuration
Multiple charging voltage levels for different batteries. Multiple operating modes: PV priority / grid priority / battery priority Detachable LCD control module with multiple communications. Support non-linear load Parallel operation up to 6 units
